| Item | Specification |
|---|---|
| USB Contact Impedance | < 100 mΩ |
| Protective Cover Opening Force | < 3000 gf |
| USB Insertion Force | < 1000 gf |
| USB Extraction Force | < 1500 gf |
| Salt Spray Test | 8H MIN, NaCl 5% |
| Component Impact Resistance | 8 kgf MIN |
| Temperature Resistance Range | -25°C < T < 85°C |
| Input Voltage | 8V–32V DC |
| Output | 5V 3.1A, 9V 2A, 12V 1.5A (QC3.0 Supported) |
| Total Power | 21.5W MAX |
This high-power USB charging module with Quick Charge 3.0 is designed for demanding environments where both fast and safe charging is required. Its broad voltage input (8–32V DC) makes it ideal for:
・Automotive systems: cars, trucks, RVs, trailers, and buses
・Marine applications: yachts, speedboats, and jet skis
・Industrial machinery: forklifts, generators, control panels
・Motorcycles and electric scooters
・Off-grid setups: solar power banks, battery stations
・Public utility and outdoor charging points

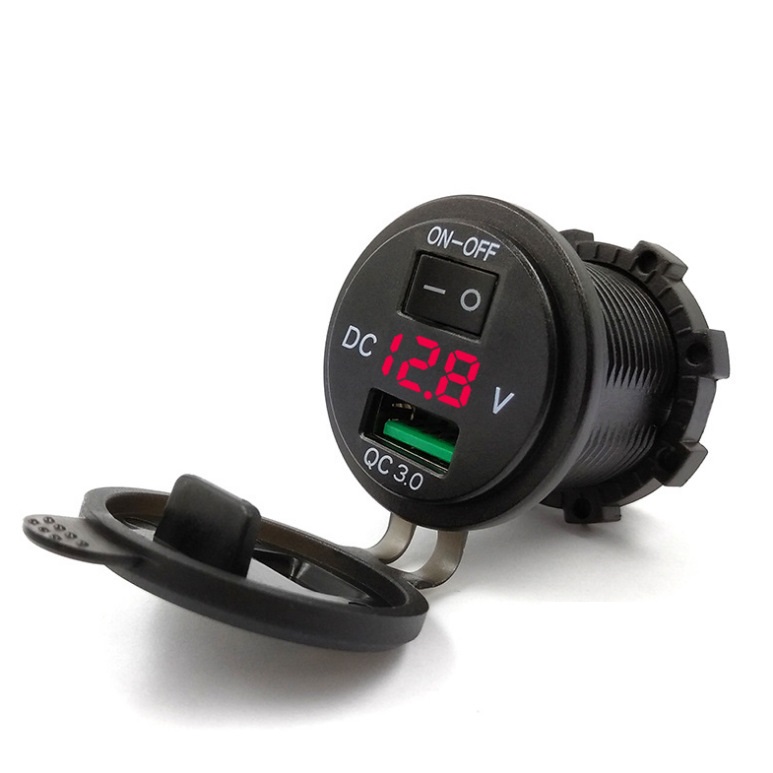

Equipped with an on/off switch, voltage display, and corrosion-resistant build, it is perfect for long-term use in both interior dashboards and outdoor panels.
